Rather Rotten Rods

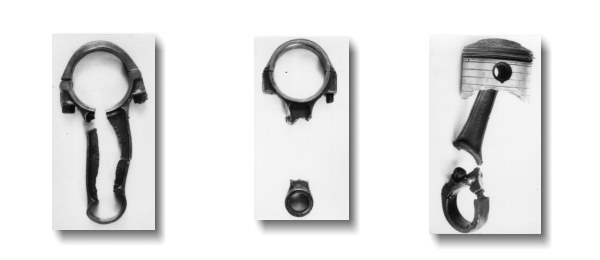

ABOVE: "THE STRANGEST TYPLE OF CONNECTING ROD FAILURE! SPLIT THROUGH THE BEAM. CAUSED BY TURKEY

WHERE DID THE MISSING PIECE OF ROD GO??? ANS: THROUGH THE CASE!

THE TYPICAL RESULT OF A CRACKED ROD

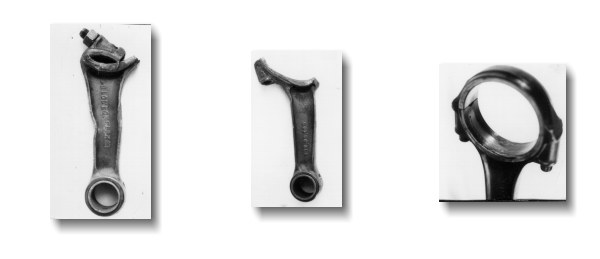

AOBVE: GUESS WHAT POUNDED OVER THE BIG END...THAT'S RIGHT, THE CASE...OR CAM

A FAILED "A" ROD, BROKEN IN THE USUAL PLACE

RESULT OF A SPUN ROD BEARING- SCORE MARKS AND OVER HEATING

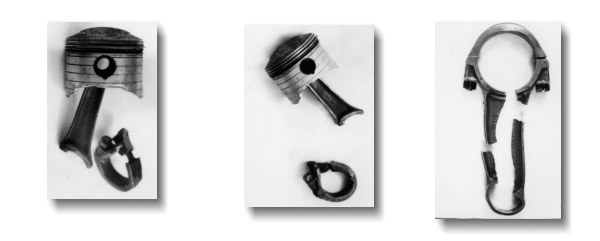

BOTTOM LEFT

BOTTOM MIDDLE

BOTTOM RIGHT
